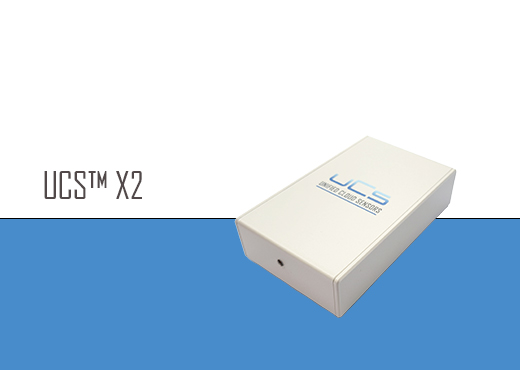

UCS™ X2


The new UCS™ X2 hardware modules are intended for use with the UCS™ CLOUD service and to enable the connection and collection of data from indicator units, HMI or PLC.  The data are then wirelessly sent by the module to the cloud storage of the UCS™ CLOUD service.

Data collection takes place via available RS-232, RS-485 or Ethernet ports, using existing protocols. The module wirelessly sends data to the database in the cloud storage using LPWAN technology and via the NB-IOT standard.

The module has a built-in battery to maintain operation in the event of a mains voltage failure.

The main features of this new model are:

- High speed thanks to the implementation of a multi-core processor

- Integrated battery for module operation in case of a power outage

- New communication module with better and faster communication with the NB-IOT network

- Improved antenna for better network reception

- Larger memory for programs and data

- Module temperature monitoring

- Module humidity monitoring

The module is installed on the desk or by screwing it to the wall.


 PDF_file_icon.svg.png DOWNLOAD INFORMATION FLYER

TECHNICAL PARAMETERS


Power supply: 5V DC
Serial ports:    RS-232, RS-485
Baud rate:   2400, 4800, 9600, 19200,38400, 115200 (bit/s)
Communication protocols: Modbus, ASCII

Communication standards:

NB-IOT
Communication frequency: 832-862 MHz (Uplink)
791-821 MHz (Downlink)
Interface for application integration: REST API (1)
Built-in battery
Yes
Operating temperature:  -20 to +60°C
Installation: desk, wall
Dimensions:    152 x 94 x 45mm (wxdxh)
Weight:       250 g

(1) A REST API is an interface that enables connections between various applications and systems over the internet. REST API offers a unified and standardized interface for communication between applications, allowing access to data and functions via the HTTP web protocol.


USED TECHNOLOGY


LPWAN (Low Power Wide Area Network)
A wireless network enabling data transmission over long distances with high reliability and high energy efficiency.

NB-IOT (Narrow Band Internet of Things)

A standard for LPWAN-type networks using the existing network structure of 4G and 5G mobile operators.

Why us?

  • Savings

    Our solution will bring you a significant saving of time and money. With remote monitoring, the need for a physical visit to the measurement site is significantly reduced. By knowing the measured values, you will find out the efficiency of your work and minimize losses.
  • Professionalism

    We will carefully consider your needs and propose an optimal solution by choosing suitable sensors and their appropriate installation. We will check your requirements, and we will also analyze the possibility of measuring other values that may be relevant in your work.
  • Trust

    We treat you fairly for yours and ours saisfaction. A mutual trust is an important feature in long-term cooperation, which is a must for remote monitoring solutions.
  • Long-term service

    We listen to you to offer a product according to your goals and plans so that you can monitor all your installations under one solution. A constant upgrade of the system throughout its lifetime is a matter of course.
