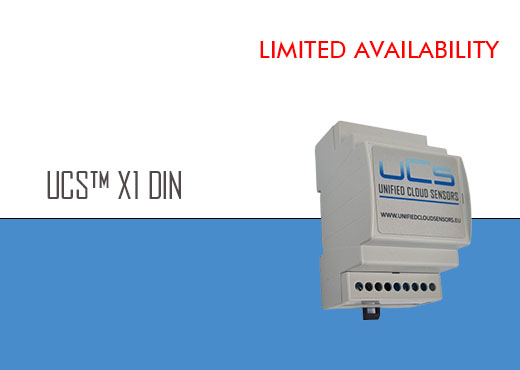

UCS™ X1 DIN

The UCS™ X1 DIN hardware modules are intended for use with the UCS™ CLOUD Solution service and to enable the connection and collection of data from indicator units, HMI or PLC.  The data are then wirelessly sent by the module to the cloud storage of the USC™ CLOUD service.

Data collection takes place via available RS-232, RS-485 or Ethernet ports, using existing protocols. The module wirelessly sends data to the database in the cloud storage using LPWAN technology and via the NB-IOT standard.

The module is mounted on a DIN rail.




 PDF_file_icon.svg.png DOWNLOAD INFORMATION FLYER


TECHNICAL PARAMETERS


Power supply: 8 - 36V DC
Serial ports:    RS-232, RS-485
Baud rate:   2400, 4800, 9600, 19200,38400, 115200 (bit/s)
Communication protocols: Modbus, ASCII

Communication standards:

 NB-IOT
Communication frequency: 832-862 MHz (Uplink)
791-821 MHz (Downlink)
Interface for application integration: REST API (1)
Operating temperature:  -20 to +60°C
Installation: DIN
Dimensions:    54 x 63 x 90mm (wxdxh)
Weight:       100 g

(1) A REST API is an interface that enables connections between various applications and systems over the internet. REST API offers a unified and standardized interface for communication between applications, allowing access to data and functions via the HTTP web protocol.


USED TECHNOLOGY

LPWAN (Low Power Wide Area Network)
A wireless network enabling data transmission over long distances with high reliability and high energy efficiency.

NB-IOT (Narrow Band Internet of Things)
A standard for LPWAN-type networks using the existing network structure of 4G and 5G mobile operators.

Why us?

  • Savings

    Our solution will bring you a significant saving of time and money. With remote monitoring, the need for a physical visit to the measurement site is significantly reduced. By knowing the measured values, you will find out the efficiency of your work and minimize losses.

  • Professionalism

    We will carefully consider your needs and propose an optimal solution by choosing suitable sensors and their appropriate installation. We will check your requirements, and we will also analyze the possibility of measuring other values that may be relevant in your work.

  • Trust

    We treat you fairly for yours and ours saisfaction. A mutual trust is an important feature in long-term cooperation, which is a must for remote monitoring solutions.

  • Long-term service

    We listen to you to offer a product according to your goals and plans so that you can monitor all your installations under one solution. A constant upgrade of the system throughout its lifetime is a matter of course.
