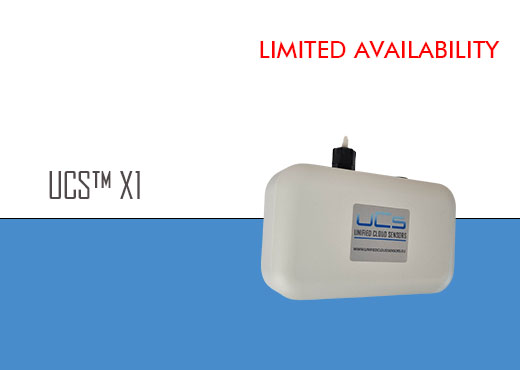

UCS™ X1


The UCS™ X1 hardware modules are intended for use with the UCS™ CLOUD service and to enable the connection and collection of data from indicator units, HMI or PLC.  The data are then wirelessly sent by the module to the cloud storage of the UCS™ CLOUD service.

Data collection takes place via available RS-232, RS-485 or Ethernet ports, using existing protocols. The module wirelessly sends data to the database in the cloud storage using LPWAN technology and via the NB-IOT standard.

The module is installed on the desk or by screwing it to the wall.


 PDF_file_icon.svg.png DOWNLOAD INFORMATION FLYER


TECHNICAL PARAMETERS


Power supply: 8 - 36V DC
Serial ports:    RS-232, RS-485
Baud rate:   2400, 4800, 9600, 19200,38400, 115200 (bit/s)
Communication protocols: Modbus, ASCII

Communication standards:

 NB-IOT
Communication frequency: 832-862 MHz (Uplink)
791-821 MHz (Downlink)
Interface for application integration: REST API (1)
Operating temperature:  -20 to +60°C
Installation: desk, wall
Dimensions:    152 x 94 x 45mm (wxdxh)
Weight:       250 g

(1) A REST API is an interface that enables connections between various applications and systems over the internet. REST API offers a unified and standardized interface for communication between applications, allowing access to data and functions via the HTTP web protocol.


USED TECHNOLOGY

LPWAN (Low Power Wide Area Network)
A wireless network enabling data transmission over long distances with high reliability and high energy efficiency.

NB-IOT (Narrow Band Internet of Things)
A standard for LPWAN-type networks using the existing network structure of 4G and 5G mobile operators.
